Description

Product Discontinued – please call us at 972-231-1129 (Dallas) or 915-599-1129 (El Paso) for Lift Options

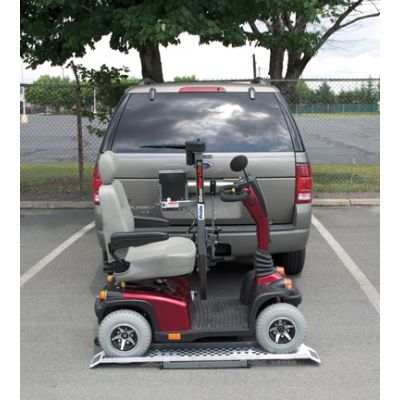

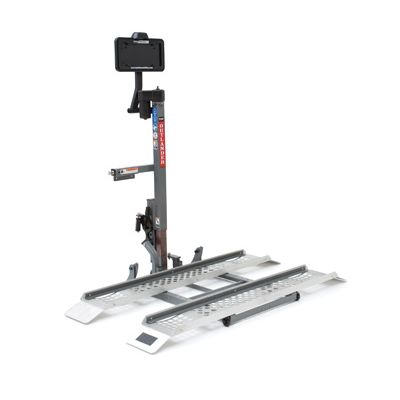

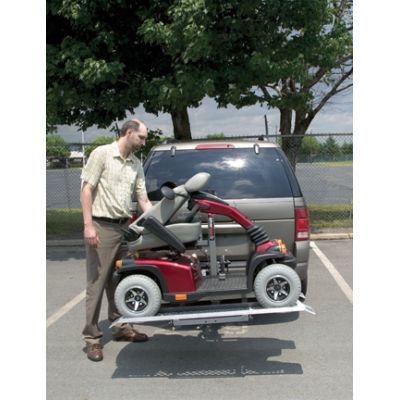

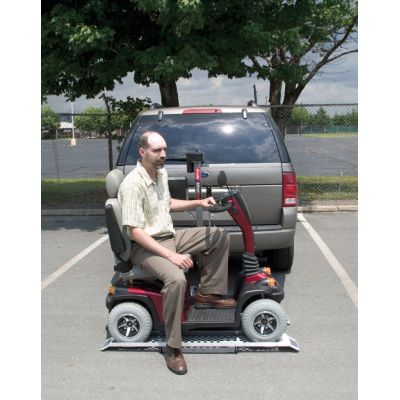

Outlander XL *Swingaway Add-on Available*

Features

• Great for larger 4-wheel scooters and powerchairs.
• Compatible with most full-size vans, minivans, trucks, sedans, SUVs and crossover vehicles.
• License plate holder standard.
• Shock-absorbing “cradle effect” protects unit from jarring vibrations.
• Standard adjustable wheel chocks.

Key Specs

• Works with Hitch Size: Class II Hitch.
• Works with Hitch Size: Class III Hitch.
• Weight Capacity: 380 lbs.
• Weight: 102 lbs.

Specifications

Type of Lift:	Outside Lift
Operation:	Power
Power Source:	Battery Hardwired
Recommended For:	Travel Scooters Full Sized Scooters Power Wheelchairs
Lifting Capacity:	380 lbs.
Platform Size – Length:	57 in.
Platform Size – Width:	27 in.
Installed Product Weight:	102 lbs.
Works With Hitch Size:	Class II Hitch Class III Hitch
Hitch Height:	12 to 20 in.
Professional Install Available:	Yes
Service Contract Available:	Yes
Warranty:	3 Year Limited Warranty
Warranty – Transferable Warranty:	Yes
Battery Pack Option:	Yes

Pride Swing-Away Adaptor

Features
The Swing-Away Adaptor allows an outlander lift to be easily pivoted away from the vehicle for easy access to the trunk, lift gate, or tailgate.

• Wiring harness internally routed.
• Height adjustable via existing hitch tubes.
• Locking points at 90˚ and 180˚ to avoid unintentional closing.
• Tension adjustment for easy operation and long-lasting durability.
• Auto latching.
• Safety locking pin.
