Description
| Model |
Jazzy® Carbon
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24″ |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 2″ |
| Overall Length3 | 37″ |
| Overall Width3 | 24″ |
| Seat-to-Ground Height | 19″ |
| Seat-to-Foot Platform Height | 14.5″ (no adjustment) |
| Front Wheels | 7″ |
| Rear Wheels | 8.5″ |
| Seat-to-Floor Range with Standard Cushion | 20.75″ |
| Seat-to-Floor Range without Cushion | 18.75″ |
| Power Elevating Seat | NA |
| Seat Weight(s) | NA |
| Battery Sizes | 24V 12AH (288WH) |
| Suspension | Front |
| Total Weight Without Batteries3,5 | 39 lbs. |
| Total Weight With Batteries3,5 | 43.6 lbs. |
| Heaviest Piece When Disassembled3 | N/A |
| Standard Seating | Material: Black, Foam Dimensions: 17″ x 17″ |
| Maximum Seat Size | 17″ x 17″ |
| Per Charge Range | Up to 9.3 miles |
| Drivetrain | 24v/250W Brushless motors |
| Standard Electronics | 35A Brushless Micon |
| HCPCS Codes | Non-coded: K0899 |
| Braking System | Regenerative and electromechanical |
| Battery Weight4 | 4 lbs. |
| Battery Charger | Off-board, 2-amp lithium-ion |

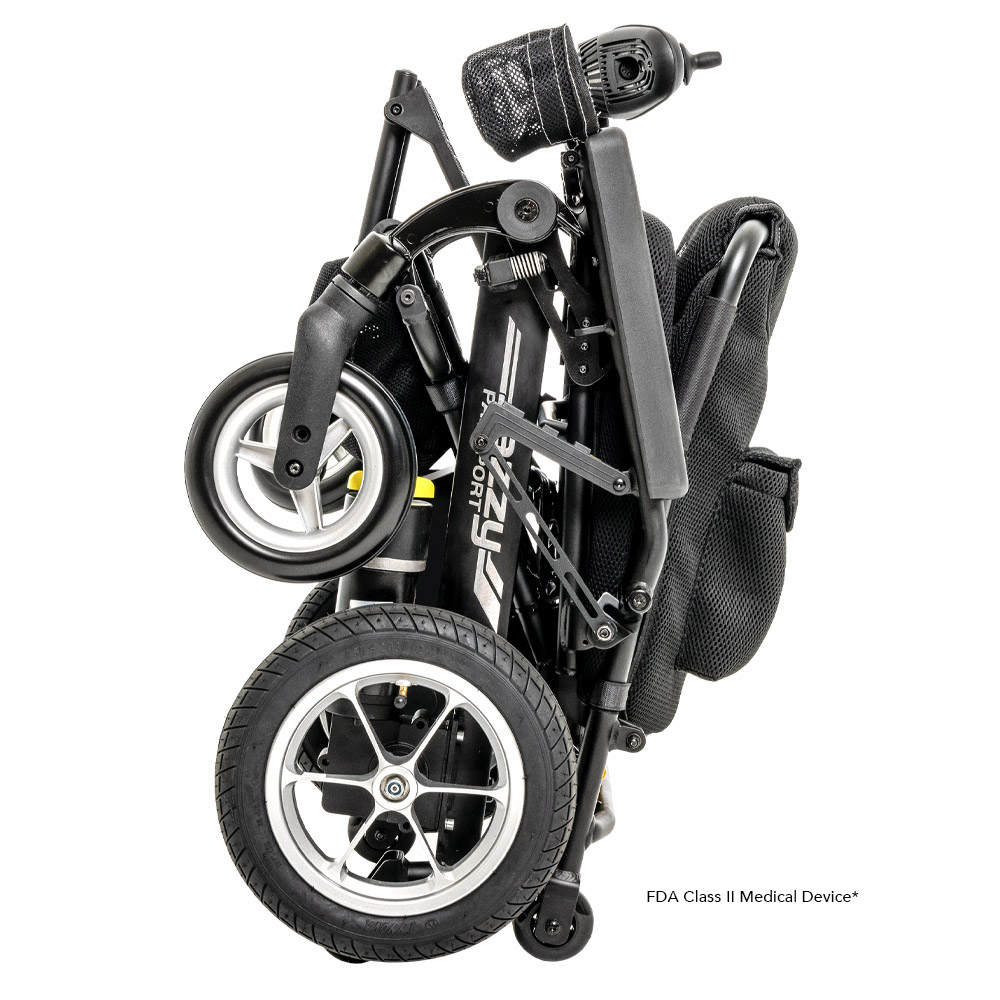

| Weight of Heaviest Piece | NA unit folds and doesn’t disassemble |
| Warranty | Frame: Lifetime limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited |
